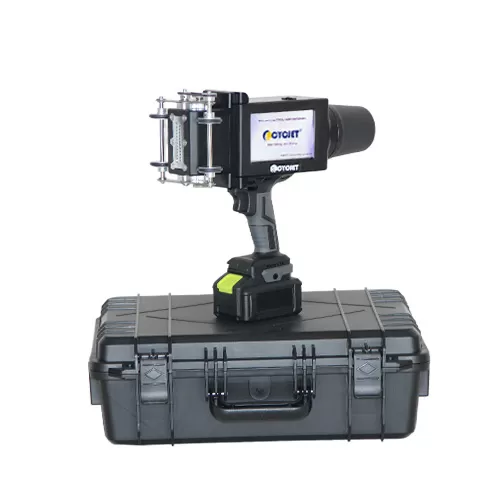

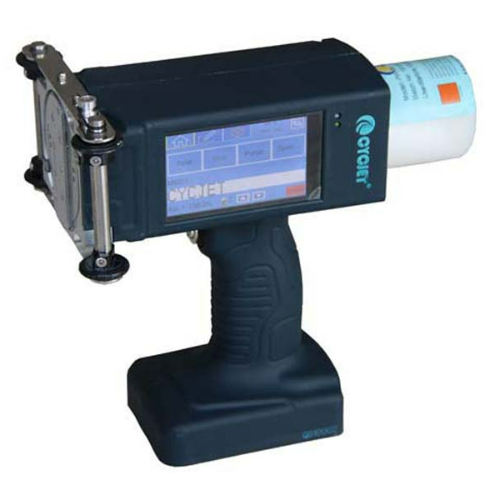

CYCJET ALT160Plus Large Character Handjet Printer

Model

Drop On Demand Large Character Printer

ALT160Plus

Print Height

10-50mm(24 dots)

Grow weight

6kg(Including standard consumables)

Package Size

50×40×30cm

Display

5 inch color touch screen

Print Rows

1-2 rows. Overall layout height not to exceed 50mm

Type

DOD Inkjet Printer

Basic configuration

Printing max two lines or five lines of numbers, or English, all the national standard

database of Chinese characters and English letters, self simple graphics, the

machine without external gas source, free warranty for one year. (Optional)

Software Function

Real-time clock date, product counting, frequency

Operation Function

English operation system, delay in printing, the font width, font height, orientation, self-

cleaning. sensor settings.

Print Speed

Manual Control

Battery Capacity

18650mAh

Powder

AC220V±10%, 50-60HZ, 5 W

Print Spacing

8-10mm

Print Content

Real date, Real time, photo, letter, shift group, serial number, batch number, bar code and QR

code, etc.

Printing Direction

Upward printing, downward printing, side printing (360 °direction printing, optional)

Typeface

Chinese, English, Arabic, Russian, Spanish, Faris, Italian etc …

(Customized available)

Memory Function

More than 60pcs text can be storage

Ink Type

Water-based ink, ketone-based ink, alcohol-based ink, other special-based inkcan be

customized as required

Ink Color

black, red, yellow, blue, white, etc. (optional)

Body Material

Newinjection body

Humidity Range

10-90% Non-condensing

Temperature Range

5-40℃

Others

No need to connect external compressed air, and no need thinner (i.e. solvent)
