Most low cost: Devices running with very low cost, without any consumption, long time working life.High- efficiency: no need to worry happened the problem of inkjet printer nozzle blocked which can lead to unplanned production standstill, resulting in unnecessary economic losses.
Ⅰ. General Description：
1. CYCJET UV laser printer suitable for Plastic Pipe line laser marking, such as HDPE, PPR, PP Pipe, Plastic Profiles( PVC, PA66, HDPE). electronic components, electrical products, IT industry, auto parts, hardware tools products, precision instruments, gift accessories, medical equipment and other high-end products of precision, fine logo printing. Typical applications such as, plastic (PA66) insulation flying laser marking, soft bag, beverage caps, express tags etc
2. Well designed software & High speed hardware support the high speed inline marking, up to 200m/min, based on different materials;
3. Friendly operate interface, easy to edit message set parameters for marking;
4. Multi-Functional application, support inline marking, stationary marking. Triggered by encoder, sensor, or closed signal from other equipment;
5. laser marking machine could communicate with different equipment or platform by developed software, such as ERP system, Database, PLC etc;
6.Long lifetime;
7.Well design and production technology, high stability and less working failure;
8. Working State Alarm system;
9. Counting system;
10. Perfect cooling system, working temperature 0-50℃;
11. No consumer goods, less production cost;
Ⅱ. Technical Parameters

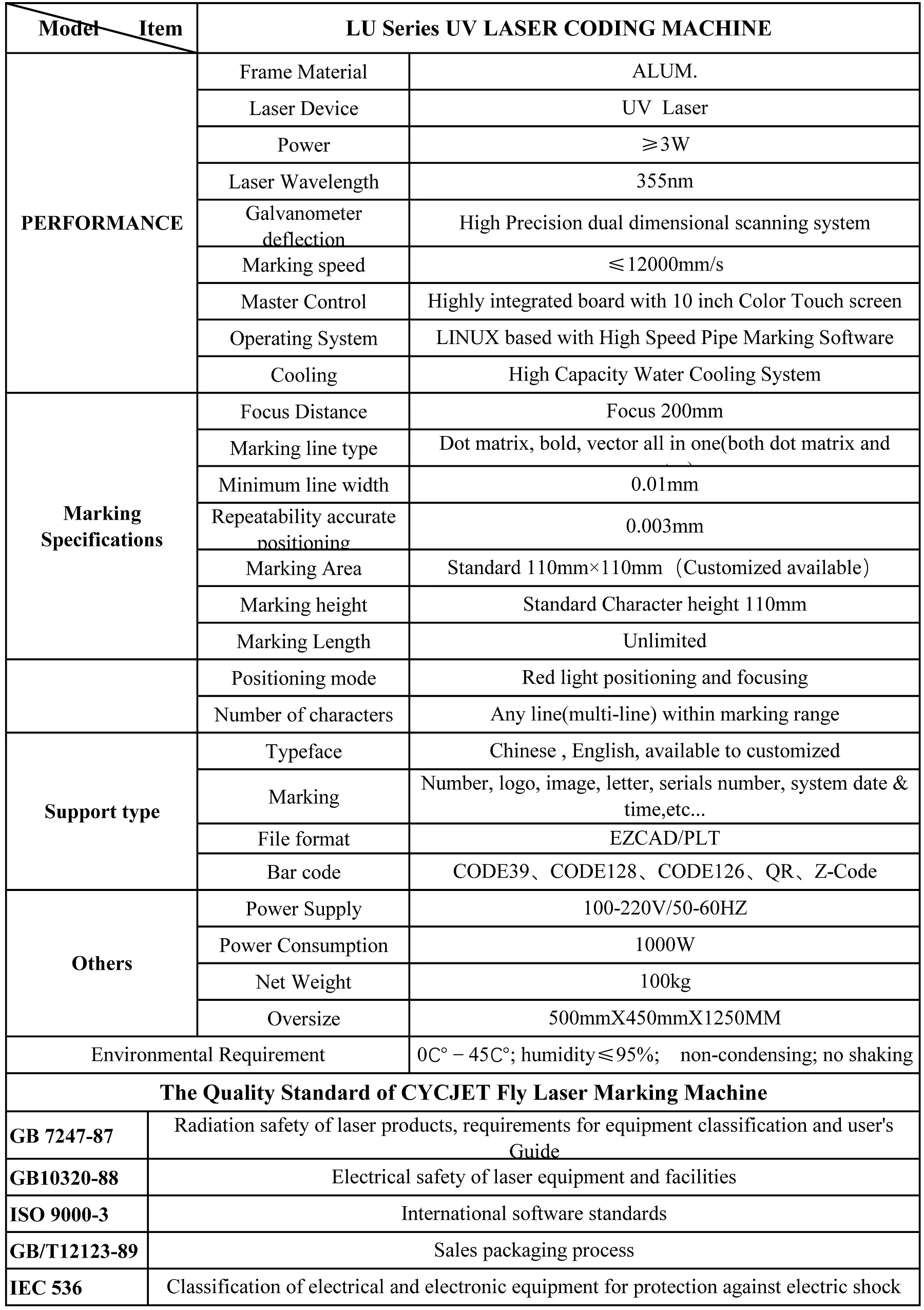

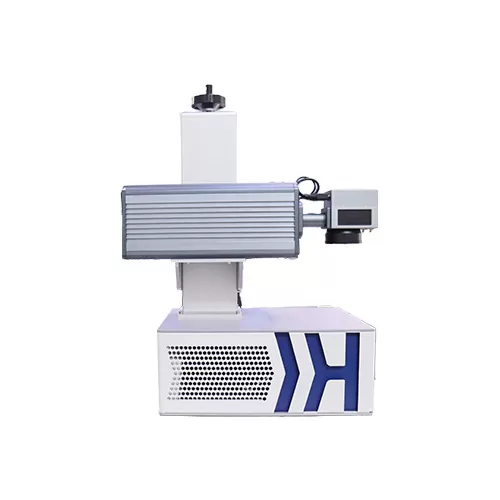

Specification of CYCJET Flying UV Laser Coding Machine
LU03 UV LASER CODING MACHINE | |||
PERFORMANCE | Frame Material | ALUM. | |
Laser Device | UV Laser | ||
Power | ≥3W | ||
Laser Wavelength | 355nm | ||
Scanning System | High-Precision 2D Galvanometer Scanner | ||
Marking Speed | ≤12000mm/s | ||
Master Control | Highly Integrated Board With 10 Inch Color Touch Screen | ||
Operating System | LINUX Based With High Speed Pipe Marking Software | ||
Cooling | High Capacity Water Cooling System | ||
Marking Specifications | Focus Distance | Focus 200mm | |
Marking Line Type | Dot Matrix, Bold, Vector | ||
Minimum Line Width | 0.01mm | ||
Repeatability Accurate Positioning | 0.003mm | ||
Marking Area | Standard 110mm×110mm（Customized Available） | ||
Marking Height | Standard Character Height 110mm | ||
Marking Length | Unlimited | ||
Positioning Mode | Red Light Positioning And Focusing | ||
Number Of Characters | Any Line(multi-line) Within Marking Range | ||
Support type | Typeface | Chinese, English & Custom Fonts | |
Marking | Text, Numbers, Logos, Images, Serial Numbers, Date & Time, etc. | ||
File Format | EZCAD/PLT | ||
Bar Code | CODE39、CODE128、CODE126、QR、Z-Code | ||
Others | Power Supply | 100–220 VAC, 50/60 Hz | |
Power Consumption | 1000W | ||
Net Weight | 100kg | ||
Dimensions | 500 × 450 × 1,250 mm | ||
Operating Environment | 0–45°C; ≤95% RH; Non-condensing | ||
The Quality Standard of CYCJET Fly Laser Marking Machine | |||
GB/T 7247.1-2024 | Radiation Safety Of Laser Products,requirements For Equipment Classification And User's Guide | ||
GB/T 10320-2011 | Electrical Safety Of Laser Equipment And Facilities | ||
ISO/IEC/IEEE 90003:2018 | International Software Standards | ||
Ⅲ. Printing Show

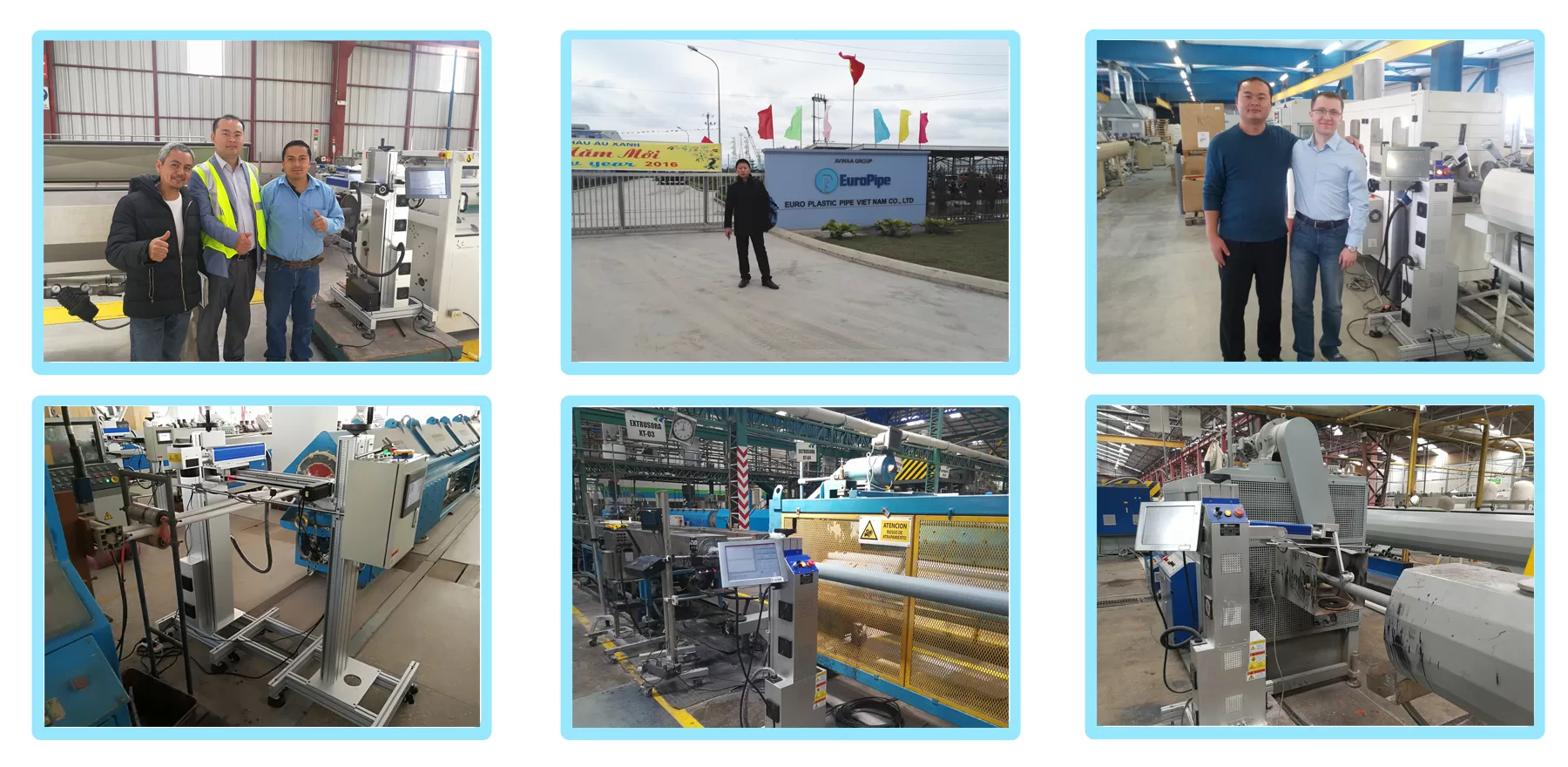

Ⅳ. CYCJET Laser Marker In The World
