CYCJET LF series Fly laser printer used independent research and development of fiber lasers by our company, with a higher cost performance. The most advanced polarized lens system to ensure superior quality and high speed marking output. The entire laser system integrates a color touch screen controller, induction electric part, encoder and lift bracket. Sophisticated and compact designed, it can be easily installed in tight spaces.
Ⅰ. General Description：
1. CYCJET Flying laser printer suitable for Plastic Pipe line laser marking, such as HDPE, UPVC/CPVC, PPR, PP Pipe, Plastic Profiles( PVC, PA66, HDPE). electronic components, electrical products, IT industry, auto parts, hardware tools products, precision instruments, gift accessories, medical equipment and other high-end products of precision, fine logo printing. Typical applications such as, plastic (PA66) insulation flying laser marking, metal plate laser marking, packing box body online laser marking, etc.
2. Well designed software & High speed hardware support the high speed inline marking, up to 200m/min, based on different materials;
3. Friendly operate interface, easy to edit message set parameters for marking;
4. Multi-Functional application, support inline marking, stationary marking. Triggered by encoder, sensor, or closed signal from other equipment;
5. Flying laser marking machine could communicate with different equipment or platform by developed software, such as ERP system, Database, PLC etc;
6.Long lifetime;
7.Well design and production technology, high stability and less working failure;
8. Working State Alarm system;
9. Counting system;
10. Perfect cooling system, working temperature 0-50℃;
11. No consumer goods, less production cost;
Ⅱ. Technical Parameters

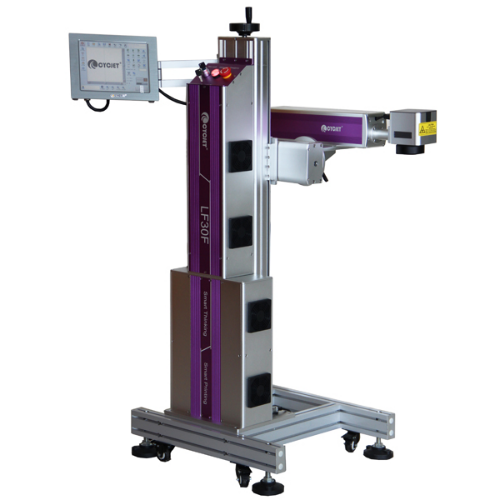

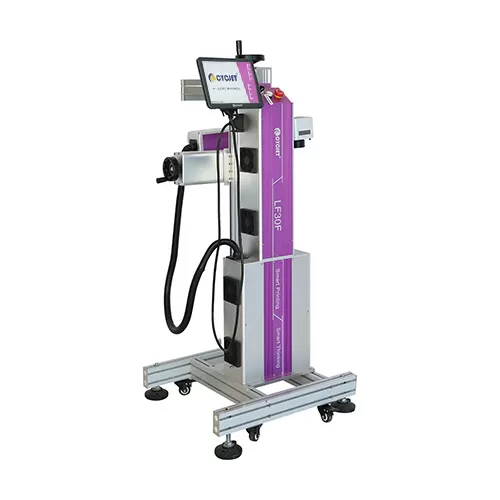

Model | LF30F Fly Laser Coding Machine | ||
PERFORMANCE | Frame Material | ALUM. | |
Laser Device | Specialized Plastic Pipe &Cable Laser | ||
Power | ≥30W | ||
Laser Wavelength | 1064nm | ||

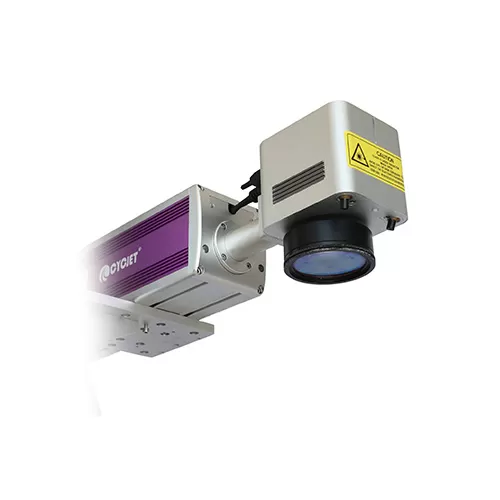

Galvanometer deflection | High Precision dual dimensional scanning system | ||
Marking speed | ≤12000mm/s | ||

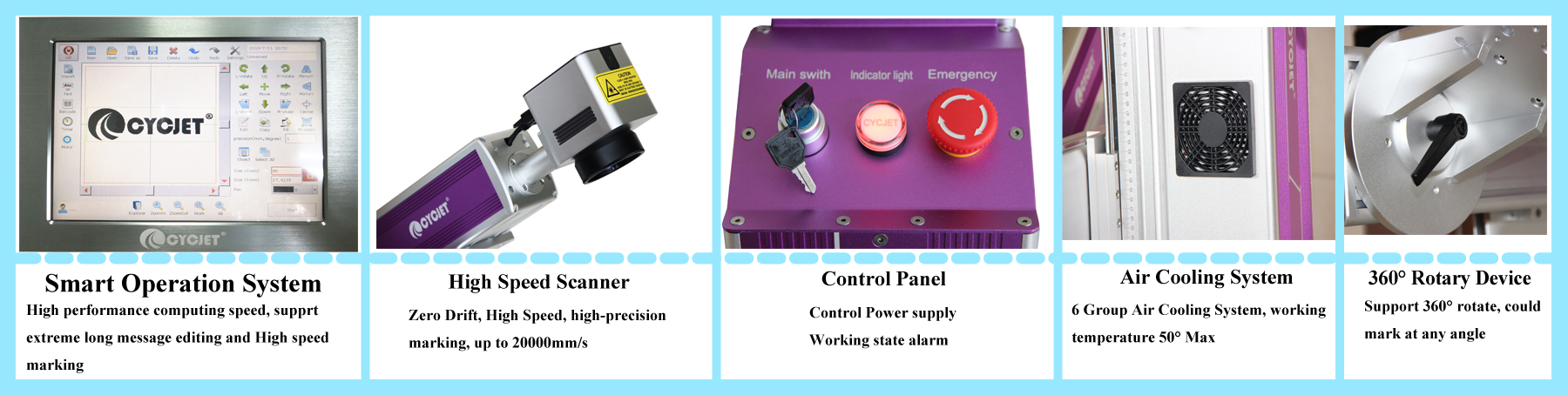

Master Control | Highly integrated board with 10 inch Color Touch screen | ||
Operating System | LINUX based with High Speed Pipe Marking Software | ||
Cooling | 6 groups Cooling Fans | ||
Marking Specifications | Focus Distance | Focus 190mm | |
Marking line type | Dot matrix,bold,vector all in one(both dot matrix and vector) | ||
Minimum line width | 0.012mm | ||
Repeatability accurate positioning | 0.003mm | ||
Marking Area | Standard 110mm×110mm（Customized available） | ||
Marking height | Standard Character height 110mm | ||
Marking Length | Unlimited | ||
1111 | Positioning mode | Red light positioning and focusing | |
Number of characters | Any line(multi-line) within marking range | ||
Line Speed | Standard 0~120m/min (depends on material &text) | ||
Support type | Typeface | Chinese,English,available to customized | |
Marking | Number,logo,image,letter,serials number,system date &time | ||
File format | CNF/PLT | ||
Bar code | CODE39、CODE128、CODE126、QR、Z-Code | ||
Others | Power Supply | 100-220V/50-60HZ | |
Power Consumption | 800W | ||
Net Weight | 90kg | ||
Oversize | 500mmX450mmX150MM | ||
Environmental Requirement | 0C° – 45C°;humidity ≤95%; non-condensing;no shaking | ||
The Quality Standard of CYCJET Fly Laser Marking Machine | |||
GB 7247-87 | Radiation safety of laser products,requirements for equipment classification and user's Guide | ||
GB10320-88 | Electrical safety of laser equipment and facilities | ||
ISO 9000-3 | International software standards | ||
GB/T12123-89 | Sales packaging process | ||
IEC 536 | Classification of electrical and electronic equipment for protection against electric shock | ||

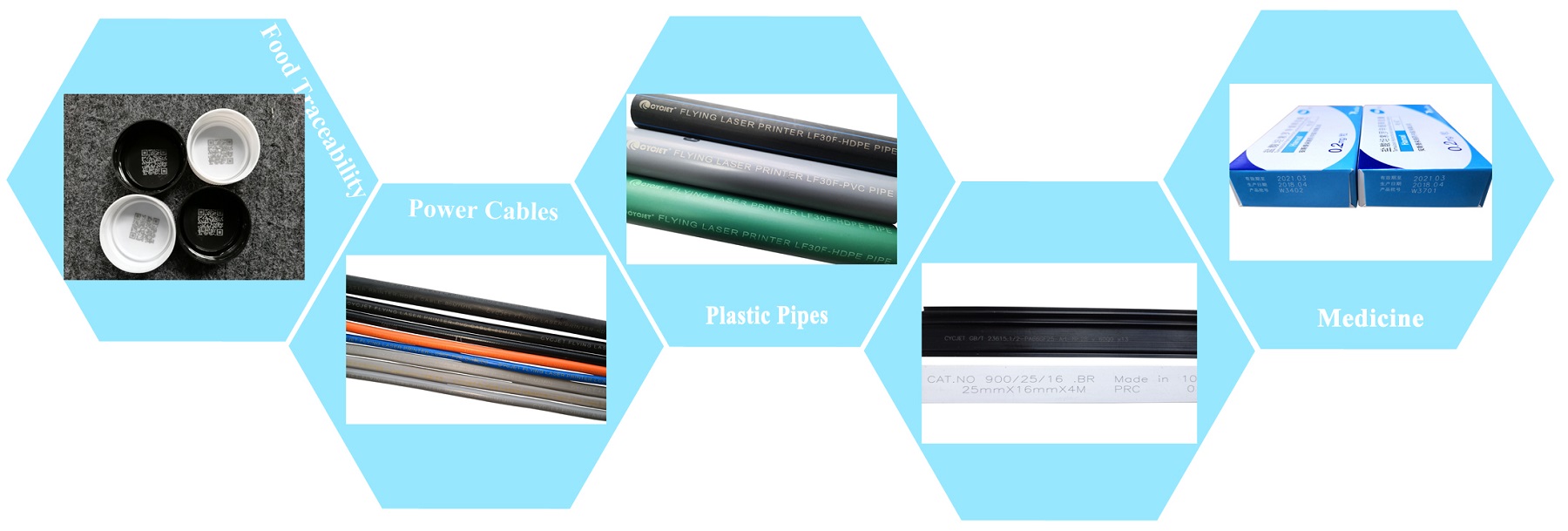

Ⅲ. Printing Show

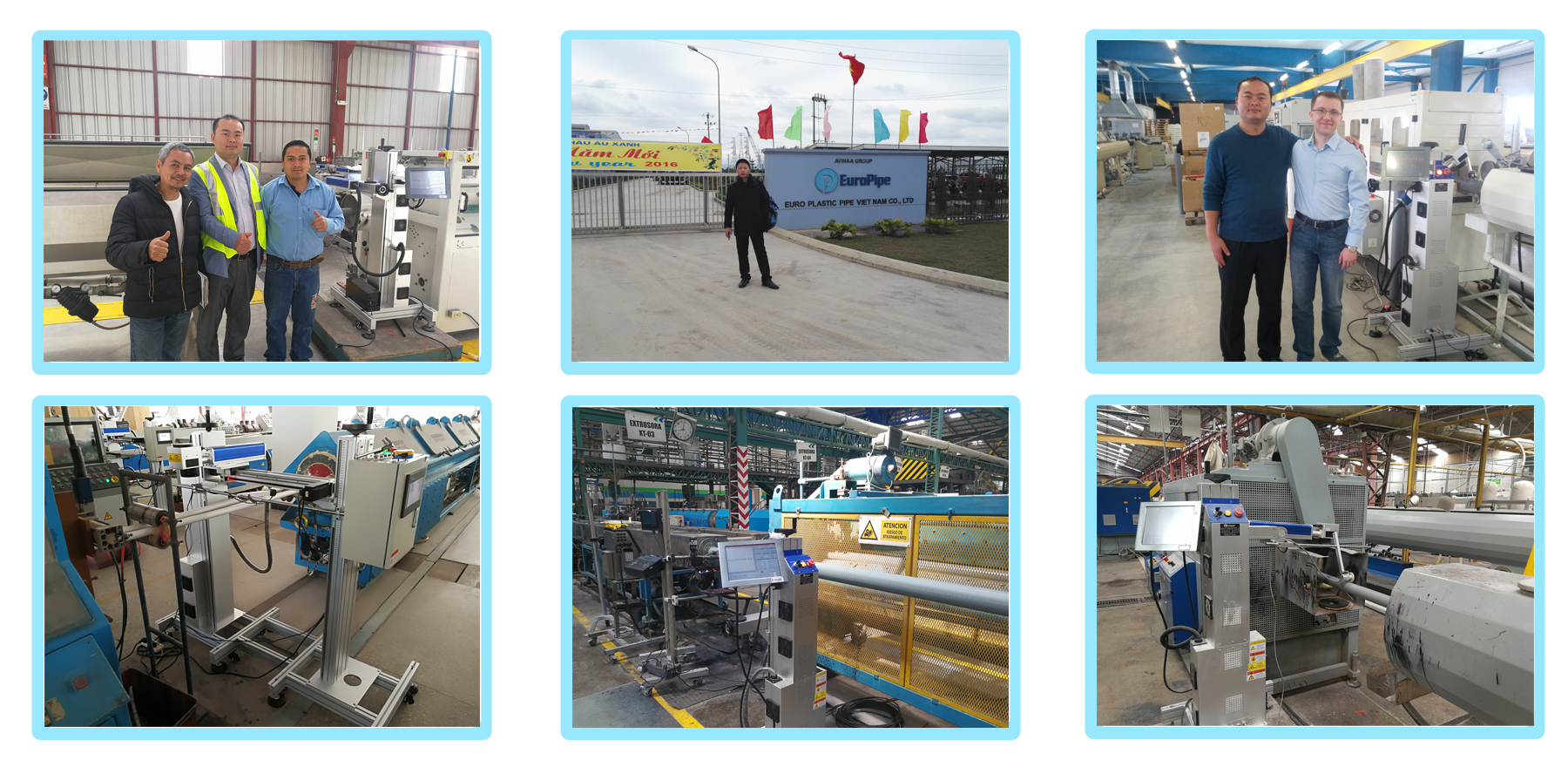

Ⅳ. CYCJET Laser Coding Machine In The World
