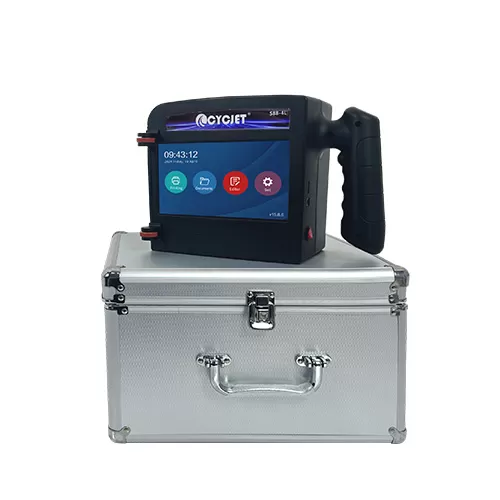

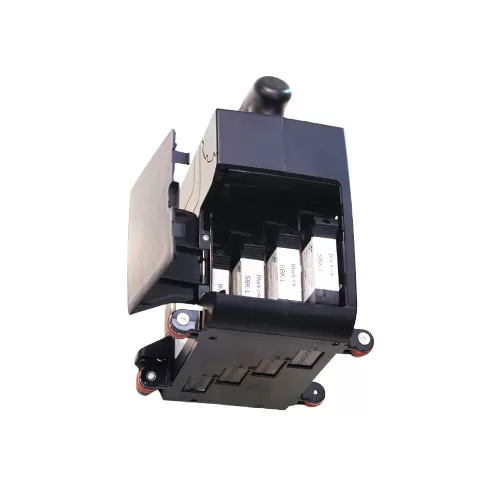

CYCJET S88-4L Large-format Handheld Inkjet Printer works with four ink cartridges at a time and can achieve a max of 100mm print height with four printheads combination. Built-in intelligent Linux operating system, simple and intuitive touch surface based on the symbol, easier to operate, users can grasp it well within 5 seconds. It can print not only text, batch number, production date, and expiry date, but also logos, QR codes, and bar codes. All customized contents or logos can be imported to the printer
Discription:
·Upgraded handheld inkjet printer tin printing technology, more smaller, portable and well-compact;
.Completely out of the PC editing, large color touch screen, like the phone as easy to edit the text..
·WYSIWYG that printing information, built-in mass font; dot-matrix fonts, horizontal strip font, vertical stripe fonts, bold fonts, character height and font size can be free adjustment, the unique security fonts to meet multi-demand.
·Humanity structural design, reasonable weight, it is can not easy to tired when long-term operation.
·Unique wheel design, flexible printing on difference shape and surface.
Technical Data:
Machine dimensions | 255*185*110mm |
Package dimensions | 315*295*200mm |
Fuselage material | Polymer shell/Metal shell |
weight | Approximately 1.38KG (without ink cartridge) and 1.87KG (with ink cartridge) |
screen size | 7.0-inch capacitive screen |
store information | Subject to the machine capacity |
Printing accuracy | 150DPI,300DPI |
Counting sequence number | 1-15 digits |
Print barcode | Code128, Code39, Int25, UPCA, ENA13, QRCode, DataMatix |
Externalinterface | Power supply, USB interface |
Usage environment | Temperature: 0-40°C, Humidity: 10-80% |
Oil-based color | Black, red, blue, green, yellow, invisible, white |
Quick-drying color | Black, red, blue, green, yellow, orange, white, invisible |
Ink cartridge capacity | 45ML |
ink properties | Dry, water-based, oil-based |
Printing font library | Synchronize the machine font library, and the font librarycan be imported via an external U-disk |
Printing distance | 2-5mm |
Printing height | 2~100mm |
Printing speed | 5-10 meters per minute |
Printed content | Date, count, batch number, serial number, picture, etc |
Power parameters | 2500mAh, 14.4V lithium battery |
Operating language | Handwriting is supported in 25 languages, including Chinese, English,Russian, Arabic, French, Vietnamese, and more |
Application:
