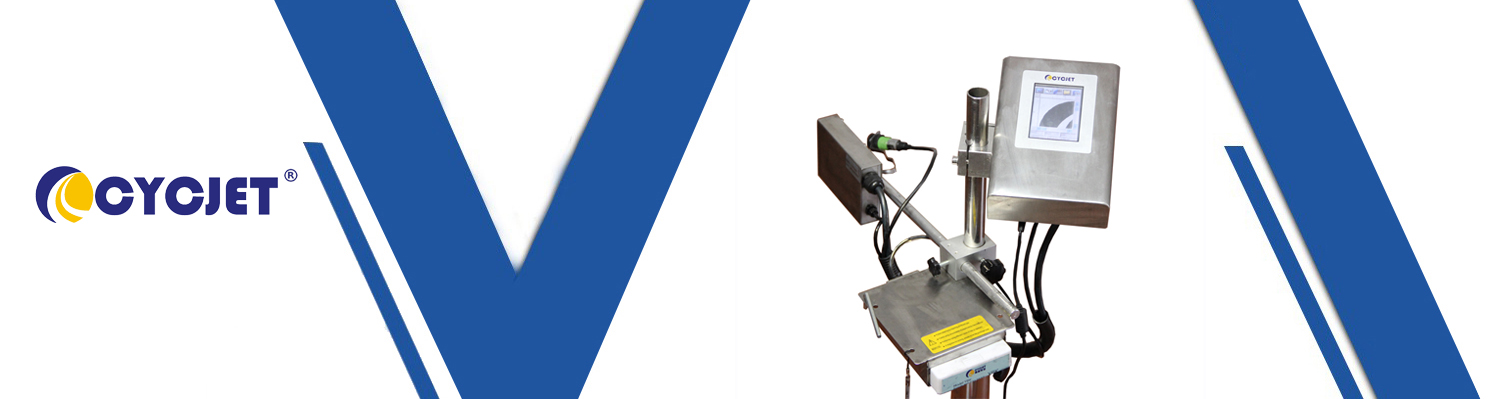

ALT400H Large Character Inkjet Online Printer

2019-07-25source:access:124

CYCJET ALT400H Online Large Character Ink-Jet System.jpg

CYCJET ALT400H Large Format Inkjet Printing System.jpg

Printing features:

Line speed capability: 80m/min
Print height up to max 54mm
Line numbers: unlimited
Fonts: more than 10 varieties
Printing functions:
180°text rotation
Dot size, character width and height are adjustable
Printing delay is adjustable
Bold factor from 1 to 27 times
Date, time, barcode, serial number and shift group are adjustable
Repeat printing automatically
1000 messages storage

Read database
Inks type:
Water-base inks
Oil-base inks
Quick drying inks
Inks color: yellow, white, black, red, purple, green and blue
Other special inks: food grade inks, UV inks, anti-scrub inks…
System protection grade:
IP65 rating (selectable)
Power supply:
90-264V 50/60Hz 6W
Environment requirement:
Temperature: 5-40℃
Humidity: 10%-90%(non-condensing)
Interface:
USB, synchronizer, sensor
Size:
Printhead: 100*17*44mm
Host machine: 185*135*56mm
Weight:
Host machine:1.6kgs

Printhead: 165g


Application:

Building Material.jpg
