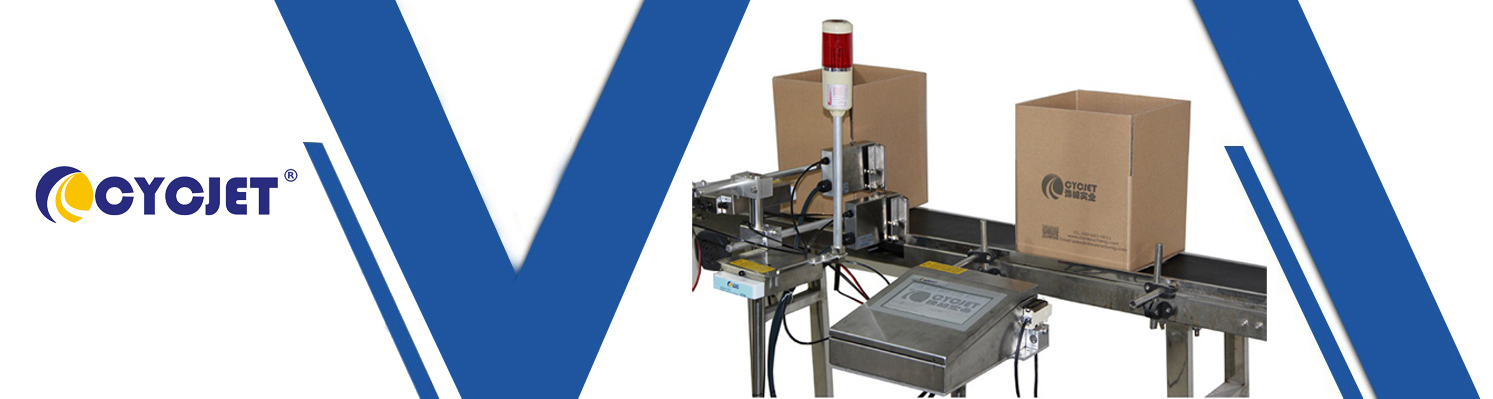

ALT552H Multi-Head Large Format Inkjet Printer

2019-07-25source:access:97

ALT552H Large format inkjet printer.jpg

Printing Features:
Printhead qty.: One main machine control mult-head(max 8head drive)
Line speed capability: 80m/min
Print height up to 54mm each printheah, two head working together max 100mm;
Line numbers: 54 lines of each head
Fonts: more than 10 varieties
Printing functions:
180°text rotation
Dot size, character width and height are adjustable
Printing delay is adjustable
Bold factor from 1 to 9 times
Date, time, barcode, serial number and shift group are adjustable
Repeat printing automatically
1000 messages storage
High-Resolution (max 400DPI)
Inks type:
Water-base inks
Oil-base inks
Quick drying inks
Inks color: yellow, white, black, red, purple, green and blue
Other special inks: food grade inks, UV inks, anti-scrub inks…
System protection grade:IP65 rating
Power supply: AC90-264V 50/60Hz 6W
Environment requirement:
Temperature: 5-40℃
Humidity: 10%-90%(non-condensing)
Interface:USB, synchronizer, sensor
Size:Printhead: 135*85*95*mm;
Host machine: 250*270*110mm
Weight:Host machine:3550g;
Printhead: 900g

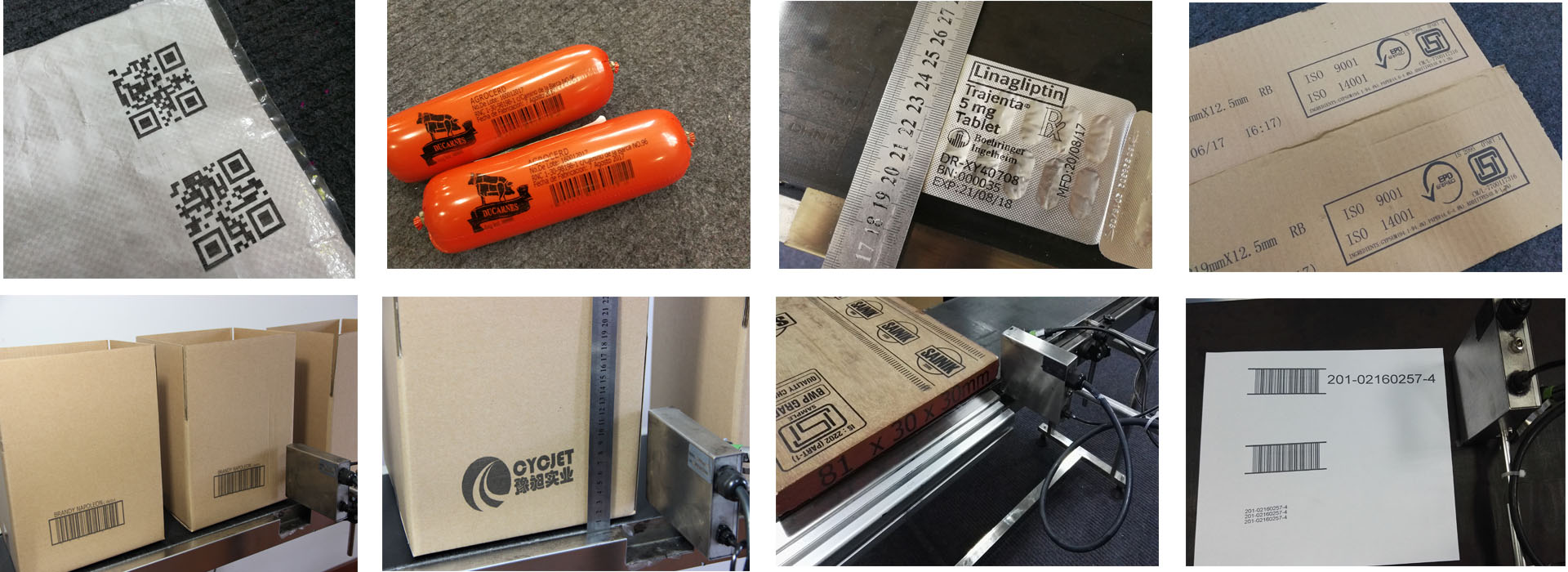

Application:

Building Material.jpg
